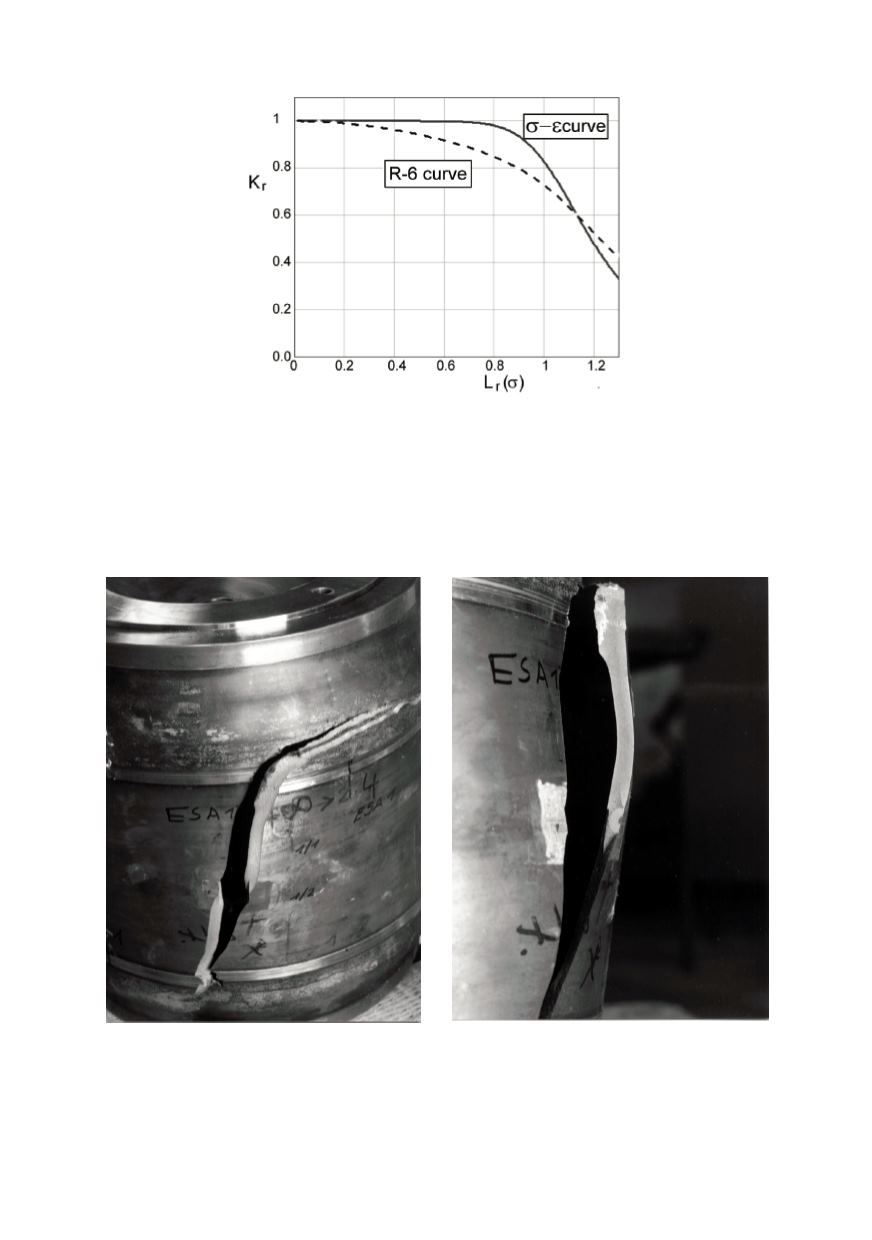

Figure 6: Example of the Fracture Analysis Diagram (FAD)
Using FAD it is possible to evaluate conditions for fracture, but also to assess the
importance of the corresponding material characteristics and the features of structures.
Figure 9 shows which of these subjects are dominated in elastic, plastic and plastic
collapse characteristics.
Figure 7: Pressure vessels after failure
