214
fmax= 2 mm fmax=3,3mm
Stress [kN/cm 2] Stress [kN/cm2]
Without plug With plug Without plug With plug
Deformation distribution Stress distribution

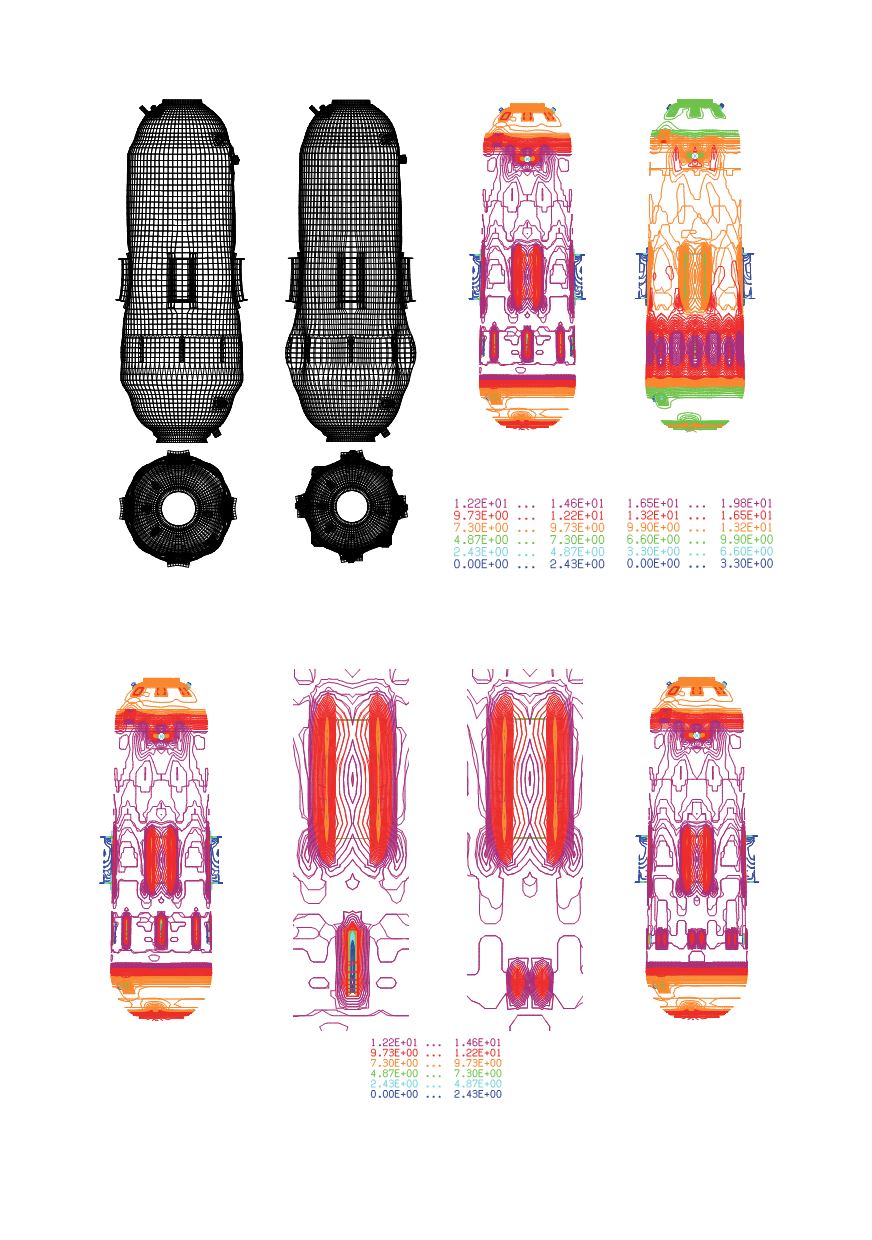

Figure 5.2: Deformation and stress distribution of the existent autoclave construction
Existed model without plug Redesigned model
Figure 5.3: Stress fields of the existed and redesigned model, equivalent stress [kN/cm2]
