2.1. Reactor DC-301
Obtained results for reactor DC-301 are presented in Fig. 2.1. Maximum deformation
in working conditions is expressed by displacement, found to be
f
max
=0.85 cm.
Temperature [
0
C]
Model
Temperature field

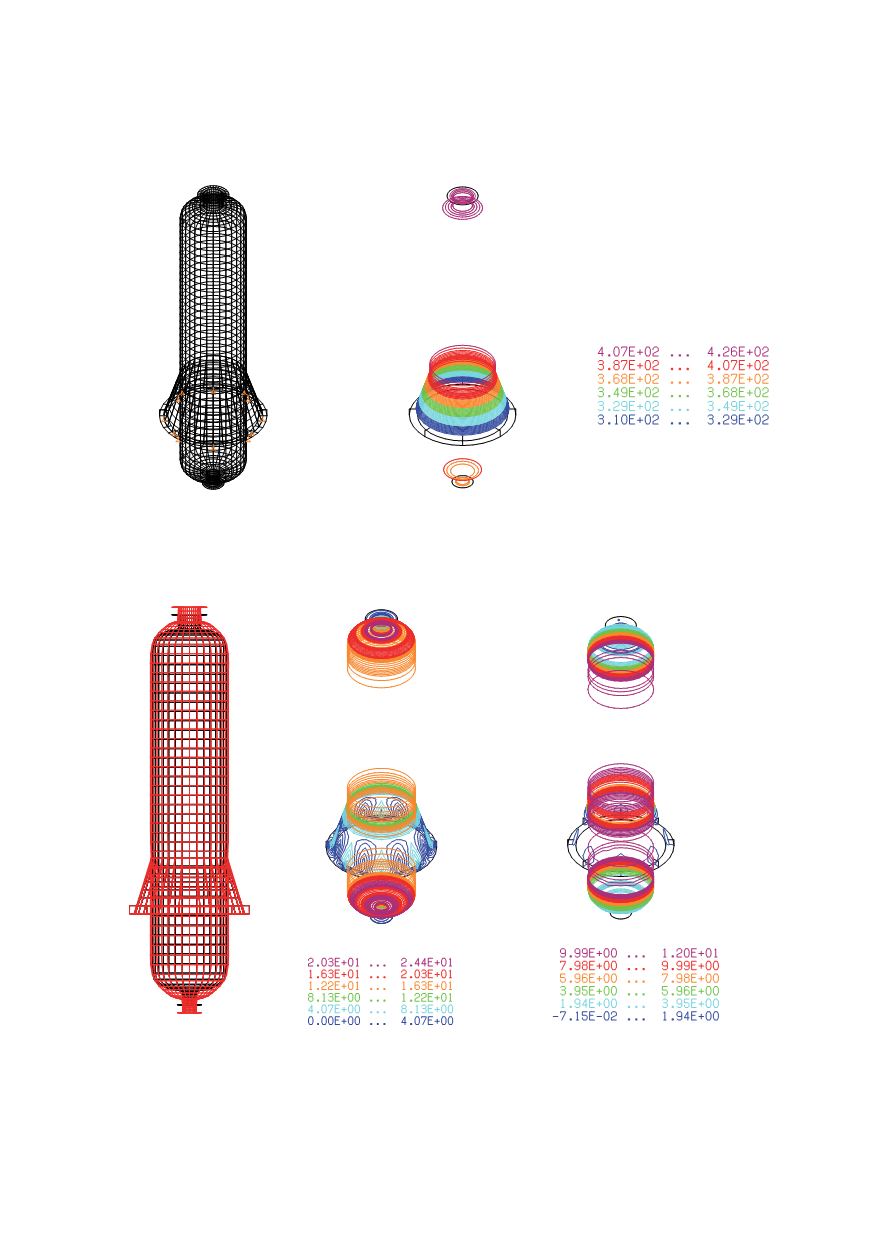

Figure2.1: Model for calculation and temperature field of the reactor DC-301
Distributions of displacement, equivalent stress and deformation energy during
hydraulic proof pressure test are presented in Fig. 2.2.
Displacement
f
max
=0.26 cm Equivalent stress [kN/cm
2
]
Deformation energy [kNcm]
Figure 2.2: The behaviour of reactor DC-301 inhydraulic proof pressure test
The amplitudes of first three modes of displacements are presented in Fig.2.3.
